C1111-4P, Cisco 1100 Series ISR Router, 4xGE Ports, VPN/SD-WAN

Description

Cisco 1100 Series Integrated Services Router (ISRs) delivers Cisco IOS® XE Software, providing WAN, comprehensive security, wired and wireless access in a single, high-performance platform. Cisco 1100 Series ISR is ideal for Small and Medium enterprise branch offices. The C1111-4P is the ISR 1100 4 Ports Dual GE WAN Ethernet Router, delivering 1 WAN port and 4GE LAN ports.

Quick Spec

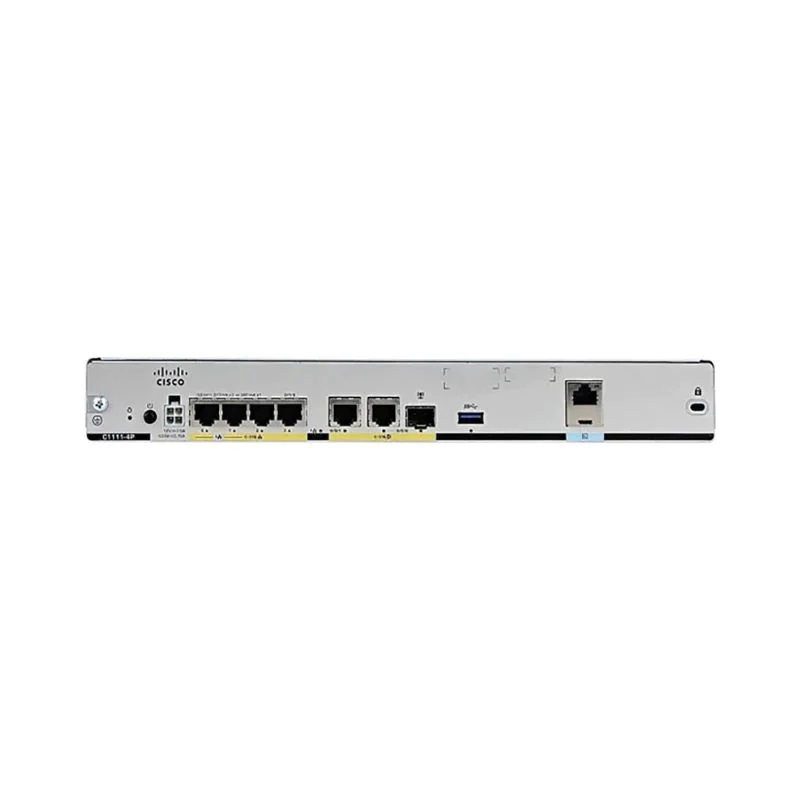

Figure 1 shows the appearance of C1111-4P.

Table 1 shows the quick spec.

Model	C1111-4P
WAN GE	1
WAN GE/SFP combo	1
ADSL2/VDSL2+	N/A
LTE Advanced (CAT6)	N/A
802.11ac	N/A
LAN GE	4
PoE	2
PoE+	1
Integrated USB 3.0 AUX/console	Yes
Dimensions (H x W x D)	1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet)
Weight with AC PS (w/o modules)	5.5 Lbs. (2.5 kg) maximum

Product Details

Table 2 shows the business benefits

Business need	Features/description
Lightweight, compact size with low power consumption	● Can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors
High performance to run concurrent services	● High performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services.
High availability and business continuity	● Redundant WAN connections for failover protection and load balancing. ● Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC 2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP).
Consistent, high application performance levels	● The router can run multiple services simultaneously with minimal performance degradation.
Risk mitigation with multilevel security	● Network perimeter security with integrated application inspection firewall. ● Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption. ● High-performance VPNs: DMVPN, FlexVPN, GET VPN, EzVPN ● Cisco Umbrella™ security architecture to provide content filtering via category-based URL classification and blocking, thus helping increase productivity and providing better use of company resources. ● Enforced security policy with OpenDNS. ● Security hardware acceleration. ● Trustworthy systems with Field-Programmable Gate Array (FPGA) and hardware anchor. ● Encrypted traffic analytics maintain integrity of encrypted flow
Unified control of wired and wireless networks from a common console for streamlined operations	● Simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller. ● Supports Mobility Express for WLAN-enabled routers.
Remote configuration and management to keep local IT staff lean	● Supports separate console/auxiliary and USB ports. ● Can be configured to work with optional USB token. ● Supports TR-069.
Performance	● Crypto performance up to 250 Mbps for 1100-8P and 150 Mbps for 1100-4P. ● A distributed multicore architecture with the industry’s first internal services plane. ● Remote installation of application-aware services that run identically to their counterparts in dedicated appliances.
Lower WAN expenditures	● Cisco Software-Defined WAN (SD-WAN) (over the Cisco Application Policy Infrastructure Controller Enterprise Module [APIC-EM]) support for optimized WAN connection.
Pay as you grow: IPsec performance upgrade model	● Router IPsec capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings andCapEx budget management.
IT consolidation, space savings, and improved Total Cost of Ownership (TCO)	● Single converged branch platform integrates routing, switching, security, and performance management capabilities.
Business continuity and increased resiliency	● The entire 1100 Series supports Power over Ethernet (PoE) and PoE+ power to endpoints.

Product Accessories

Licenses

Table 3 shows the licenses for C1111-4P.

Licenses	Description
SL-1100-4P-APP	AppX License for Cisco ISR 1100 4P Series
C1-SL-1100-4P-APP	AppX Foundation License for Cisco ISR 1100 4P Series
SL-1100-4P-SEC	Security License for Cisco ISR 1100 4P Series
C1-SL-1100-4P-SEC	Security License for Cisco ISR 1100 4P Series
SL-1100-4P-SECNPE	NPE Security License for Cisco ISR 1100 4P Series

Small Form-Factor Pluggable Supported

Table 4 shows the SFP for Cisco 1100 Series Routers.

Small Form-Factor Pluggable	ISR 1100 8P	ISR 1100 4P	Description
GLC-EX-SMD	Yes	Yes	1000BASE-EX SFP transceiver module, SMF, 1310nm, DOM.
GLC-LH-SMD	Yes	Yes	GE SFP, LC connector LX/LH transceiver; with DOM.
GLC-SX-MMD	Yes	Yes	GE SFP, LC connector SX transceiver; with DOM.
GLC-ZX-SMD	Yes	Yes	1000BASE-ZX SFP; with DOM.
GLC-FE-100ZX	Yes	Yes	100BASE-ZX SFP (80km).
GLC-GE-100FX	Yes	Yes	100FX SFP on GE ports.
GLC-BX-D	Yes	Yes	1000BASE-BX SFP, 1490NM.
GLC-BX-U	Yes	Yes	1000BASE-BX SFP, 1310NM.

Compare to Similar Item

Table 5 shows the comparison between C1111-4P and C1111-8P.

Model	C1111-8P	C1111-4P
WAN GE	1	1
WAN GE/SFP combo	1	1
ADSL2/VDSL2+	N/A	N/A
LTE Advanced (CAT6)	N/A	N/A
802.11ac	N/A	N/A
LAN GE	8	4
PoE	4	2
PoE+	2	1
Integrated USB 3.0 AUX/console	Yes	Yes
