Description

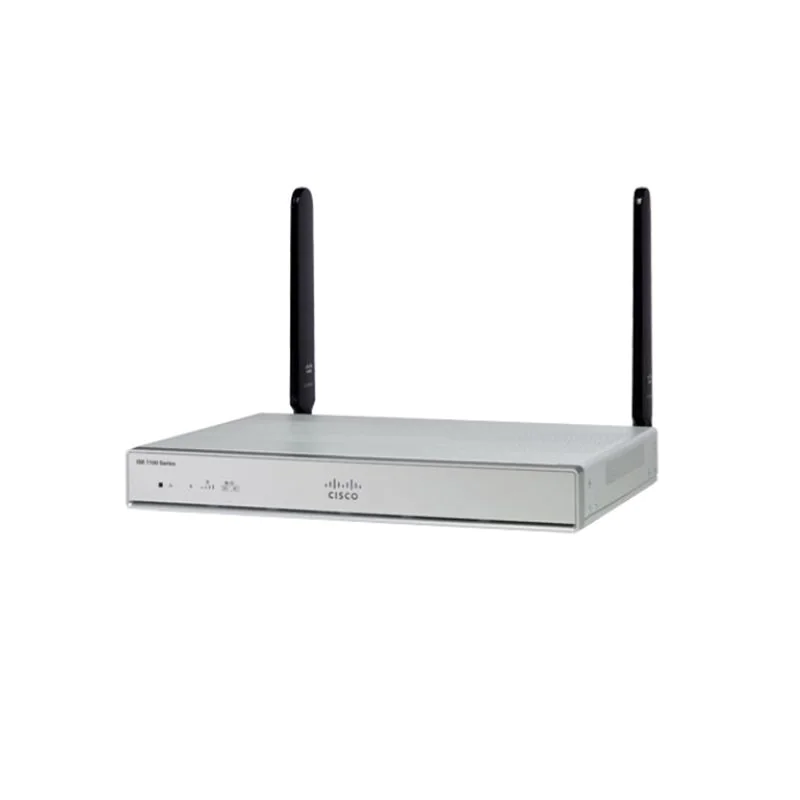

Cisco 1100 Series Integrated Services Router (ISRs) delivers Cisco IOS XE Software, providing WAN, comprehensive security, wired and wireless access in a single, high-performance platform. Cisco 1100 Series ISR is ideal for Small and Medium enterprise branch offices. The C1101-4PLTEPWX is the ISR 1101 4 Ports LTE, X WiFi domain.
Quick Spec
Table 1 shows the quick spec.
|
Model |
C1101-4PLTEPWX |
|
GE |
1 |
|
GE/SFP combo |
N/A |
|
ADSL2/VDSL2+ |
N/A |
|
LTE Advanced (CAT6) |
N/A |
|
802.11ac |
2X2 MIMO |
|
GE |
4 |
|
PoE |
N/A |
|
PoE+ |
N/A |
|
Integrated USB 3.0 AUX/console |
Yes (No AUX) |
Product Details
Table 2 shows the business benefits.
| Business need | Features/description |
| Lightweight, compact size with low power consumption | Can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors. |
| High performance to run concurrent services | High performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services. |
| High availability and business continuity | Redundant WAN connections for failover protection and load balancing.
Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP). |
| Consistent, high application performance levels | The router can run multiple services simultaneously with minimal performance degradation. |
| Risk mitigation with multilevel security | Network perimeter security with integrated application inspection firewall.
Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption. High-performance VPNs: DMVPN, FlexVPN, GET VPN, EzVPN Cisco Umbrellasecurity architecture to provide content filtering via category-based URL classification and blocking, thus helping increase productivity and providing better use of company resources. Enforced security policy with OpenDNS. Security hardware acceleration. Trustworthy systems with Field-Programmable Gate Array (FPGA) and hardware anchor. Encrypted traffic analytics maintain integrity of encrypted flow |
| Unified control of wired and wireless networks from a common console for streamlined operations | Simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller.
Supports Mobility Express for WLAN-enabled routers. |
| Remote configuration and management to keep local IT staff lean | Supports separate console/auxiliary and USB ports.
Can be configured to work with optional USB token. Supports TR-069. |
| Performance
Throughput Service reliability |
Crypto performance up to 250 Mbps for 1100-8P and 150 Mbps for 1100-4P.
A distributed multicore architecture with the industrys first internal services plane. Remote installation of application-aware services that run identically to their counterparts in dedicated appliances. |
| Lower WAN expenditures | Cisco Software-Defined WAN (SD-WAN) (over the Cisco Application Policy Infrastructure Controller Enterprise Module [APIC-EM]) support for optimized WAN connection. |
| Pay as you grow: IPsec performance upgrade model | Router IPsec capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings andCapEx budget management. |
| IT consolidation, space savings, and improved Total Cost of Ownership (TCO) | Single converged branch platform integrates routing, switching, security, and performance management capabilities. |
| Business continuity and increased resiliency | The entire 1100 Series supports Power over Ethernet (PoE) and PoE+ power toendpoints. |
Supported Products
Table 3 shows recommended supported products.
| Models | Description |
| SL-1100-4P-APP | AppX License for Cisco ISR 1100 4P Series |
| C1-SL-1100-4P-APP | AppX Foundation License for Cisco ISR 1100 4P Series |
| SL-1100-4P-SEC | Security License for Cisco ISR 1100 4P Series |
| C1-SL-1100-4P-SEC | Security License for Cisco ISR 1100 4P Series |
| SL-1100-4P-SECNPE | NPE Security License for Cisco ISR 1100 4P Series |
| GLC-EX-SMD | 1000BASE-EX SFP transceiver module, SMF, 1310nm, DOM. |
| GLC-LH-SMD | GE SFP, LC connector LX/LH transceiver; with DOM. |
| GLC-SX-MMD | GE SFP, LC connector SX transceiver; with DOM. |
| GLC-ZX-SMD | 1000BASE-ZX SFP; with DOM. |
| GLC-FE-100ZX | 100BASE-ZX SFP (80km). |
| GLC-BX-D | 1000BASE-BX SFP, 1490NM. |
| GLC-BX-U | 1000BASE-BX SFP, 1310NM. |
Compare to Similar Item
Table 4 shows the comparison.
|
Model |
C1101-4PLTEPWX |
|
|
WAN GE |
N/A |
1 |
|
WAN GE/SFP combo |
1 |
N/A |
|
ADSL2/VDSL2+ |
1 G.FAST |
N/A |
|
LTE Advanced (CAT6) |
1 EMEAR & North America |
N/A |
|
802.11ac |
2X2 MIMO |
2X2 MIMO |
|
LAN GE |
8 |
4 |
|
PoE |
4 |
N/A |
|
PoE+ |
2 |
N/A |
|
Integrated USB 3.0 AUX/console |
Yes |
Yes (No AUX) |
Get More Information
Do you have any question about the C1101-4PLTEPWX
Contact us now via Live Chat or sales@router-switch.com.
C1101-4PLTEPWX Specification
C1101-4PLTEPWX Specification |
|
|
GE |
1 |
|
GE/SFP combo |
N/A |
|
ADSL2/VDSL2+ |
N/A |
|
LTE Advanced (CAT6) |
N/A |
|
802.11ac |
2X2 MIMO |
|
GE |
4 |
|
PoE |
N/A |
|
PoE+ |
N/A |
|
Integrated USB 3.0 AUX/console |
Yes (No AUX) |
|
Pluggable |
Yes (All) |
| Memory (default and maximum) | DRAM: 4 GB
Flash: 4 GB |
| Console | · Micro USB console (USB 3.0). |
| Mini-USB port (reserved) | · Micro-USB port to support remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM) (USB 3.0). |
| 802.11ac | · 2×2 SU-MIMO/MU-MIMO with two spatial streams.
· Maximal Ratio Combining (MRC). · 20-, 40-, and 80-MHz channels. · PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz). · Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx). · 802.11 Dynamic Frequency Selection (DFS). · Cyclic Shift Diversity (CSD) support. |
| Software | · Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 (8.7 for 1101 series) MR1 or later. |
| External power supply | · AC input voltage: Universal 100 to 240 VAC.
· Frequency: 50 to 60 Hz. · Maximum output power: 66W (default). · Output voltages: 12 VDC. · Optional PoE and PoE+: ◦ Single 150W power supply required for Cisco 1100-8P series router ◦ Single 115W power supply required for Cisco 1100-4P series router · External output voltage: 48 VDC. |
| USB 3.0 | · USB devices supported:
◦ USB eTokens and USB flash memory · Note: Devices USB 3.0 supports to be connected externally. |
| LEDs | · WWAN (green/amber).
· SIM status (green/amber). · Received signal strength indication (RSSI) bar (green). · 3G/LTE service (green/amber). · GPS (green/amber). · Speed and link for Gigabit Ethernet WAN port (green). · Speed and link for all Fast Ethernet LAN ports (green). |
| Physical dimensions
(H x W x D) |
1.1 x 7.5 x 6.0 in. (27.9 x 190.5 x 152.4 mm) (includes rubber feet models) |
| Weight | 3.34 lb (1.51kg) |
| Environmental operating range | · Nonoperating temperature: -4° to 149°F (-0° to 65°C).
· Nonoperating humidity: 5% to 95% relative humidity (noncondensing). · Nonoperating altitude: 0 to 15,000 ft (0 to 4570 m). · Operating temperature: 32° to 113°F (0° to 45°C). · Operating humidity: 10% to 85% relative humidity (noncondensing). · Operating altitude: 0 to 10,000 ft (0 to 3000 m). |
