Cisco Router ISR 1100 - C1111-8P

Cisco Router ISR 1100 – C1111-8P

C1111-8P – Cisco 1100 Series Integrated Services Routers

Category:

Description

Cisco 1100 Series Integrated Services Router (ISRs) delivers Cisco IOS® XE Software, providing WAN, comprehensive security, wired and wireless access in a single, high-performance platform. Cisco 1100 Series ISR is ideal for Small and Medium enterprise branch offices. The C1111-8P is the ISR 1100 8 Ports Dual GE WAN Ethernet Router, delivering 1 WAN port and 8GE LAN ports.

Quick Spec

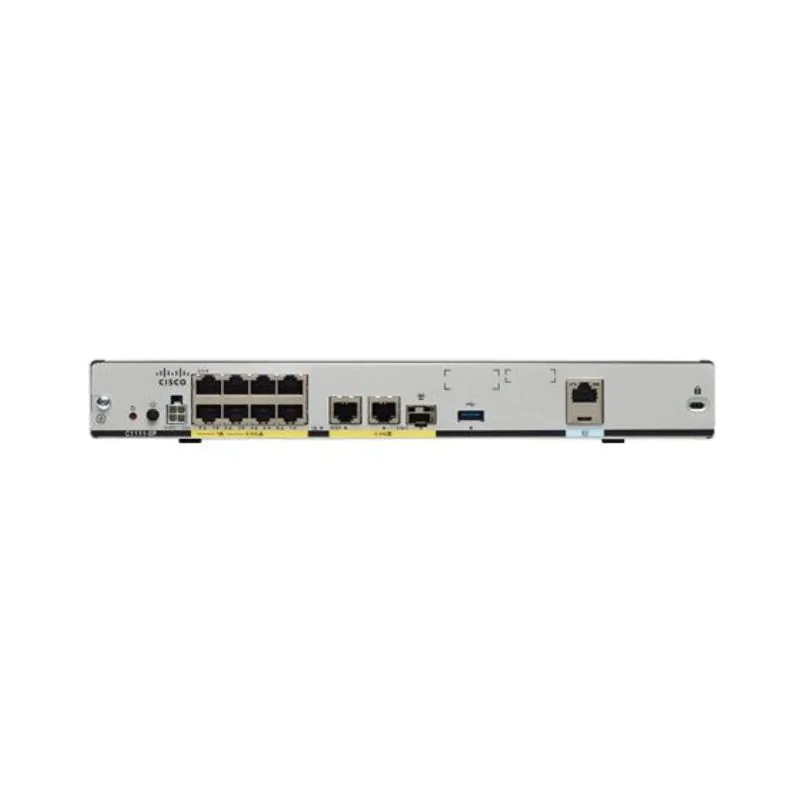

Figure 1 shows the appearance of C1111-8P.

Cisco C1111-8P Appearance

Table 1 shows the quick spec.

Model C1111-8P
GE 1
GE/SFP combo 1
ADSL2/VDSL2+ N/A
LTE Advanced (CAT6) N/A
802.11ac N/A
GE 8
PoE 4
PoE+ 2
Integrated USB 3.0 AUX/console Yes
Dimensions (H x W x D) 1.75 x 12.7 x 9.03 in.

(42 x 323 x 230mm) (includes rubber feet)
Weight with AC PS (w/o modules) 5.5 Lbs. (2.5 kg) maximum

Product Details

Figure 2 shows the back ports of C1111-8P. It doesn’t include the antennas.

Cisco C1111-8P back ports

Note:

① LAN ⑦ GE 0/0/0 – SFP
② CLEI Label ⑧ GE 0/0/0 – RJ45
③ Serial Number ⑨ GE 0/0/1
④ Kensington Lock Slot ⑩ 4-pin Power Connector
⑤ RJ45 / Micro USB Console ⑪ Power Switch
⑥ USB3.0 ⑫ Reset Button

Table 2 shows the business benefits.

Business need Features/description
Lightweight, compact size with low power consumption

  • ● Can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors.
High performance to run concurrent services

  • ● High performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services.
High availability and business continuity

  • ●  Redundant WAN connections for failover protection and load balancing.
  • ●  Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC 2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP).
Consistent, high application performance levels

  • ●  The router can run multiple services simultaneously with minimal performance degradation.
Risk mitigation with multilevel security

  • ●  Network perimeter security with integrated application inspection firewall.
  • ●  Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption.
  • ●  High-performance VPNs: DMVPN, FlexVPN, GET VPN, EzVPN
  • ●  Cisco Umbrella™ security architecture to provide content filtering via category-based URL classification and blocking, thus helping increase productivity and providing better use of company resources.
  • ●  Enforced security policy with OpenDNS.
  • ●  Security hardware acceleration.
  • ●  Trustworthy systems with Field-Programmable Gate Array (FPGA) and hardware anchor.
  • ●  Encrypted traffic analytics maintain integrity of encrypted flow
Unified control of wired and wireless networks from a common console for streamlined operations

  • ●  Simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller.
  • ●  Supports Mobility Express for WLAN-enabled routers.
Remote configuration and management to keep local IT staff lean

  • ●  Supports separate console/auxiliary and USB ports.
  • ●  Can be configured to work with optional USB token.
  • ●  Supports TR-069.
Performance



  • ●  Throughput
  • ●  Service reliability


  • ●  Crypto performance up to 250 Mbps for 1100-8P and 150 Mbps for 1100-4P.
  • ●  A distributed multicore architecture with the industry’s first internal services plane.
  • ●  Remote installation of application-aware services that run identically to their counterparts in dedicated appliances.
Lower WAN expenditures

  • ●  Cisco Software-Defined WAN (SD-WAN) (over the Cisco Application Policy Infrastructure Controller Enterprise Module [APIC-EM]) support for optimized WAN connection.
Pay as you grow: IPsec performance upgrade model

  • ●  Router IPsec capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings andCapEx budget management.
IT consolidation, space savings, and improved Total Cost of Ownership (TCO)

  • ●  Single converged branch platform integrates routing, switching, security, and performance management capabilities.
Business continuity and increased resiliency

  • ●  The entire 1100 Series supports Power over Ethernet (PoE) and PoE+ power to endpoints.

Product Accessories

Licenses

Table 3 shows the licenses for C1111-8P.

Licenses Description
C1-SL-1100-8P-APP AppX Foundation License for Cisco ISR 1100 8P Series
SL-1100-8P-SEC Security License for Cisco ISR 1100 8P Series
SL-1100-8P-SECNPE NPE Security License for Cisco ISR 1100 8P Series
C1-SL-1100-8P-SEC Security Foundation License for Cisco ISR 1100 8P Series
FL-VPERF-8P-200 IPSEC PLUS 200 Mbps License for Cisco ISR 1100 8P Series

Small Form-Factor Pluggable Supported

Table 4 shows the SFP for Cisco 1100 Series Routers.

Small Form-Factor Pluggable ISR 1100 8P ISR 1100 4P Description
GLC-EX-SMD Yes Yes 1000BASE-EX SFP transceiver module, SMF, 1310nm, DOM.
GLC-LH-SMD Yes Yes GE SFP, LC connector LX/LH transceiver; with DOM.
GLC-SX-MMD Yes Yes GE SFP, LC connector SX transceiver; with DOM.
GLC-ZX-SMD Yes Yes 1000BASE-ZX SFP; with DOM.
GLC-FE-100ZX Yes Yes 100BASE-ZX SFP (80km).
GLC-GE-100FX Yes Yes 100FX SFP on GE ports.
GLC-BX-D Yes Yes 1000BASE-BX SFP, 1490NM.
GLC-BX-U Yes Yes 1000BASE-BX SFP, 1310NM.

Compare to Similar Item

Table 5 shows the comparison between C1111-4P and C1111-8P.

Model C1111-8P C1111-4P
WAN GE 1 1
WAN GE/SFP combo 1 1
ADSL2/VDSL2+ N/A N/A
LTE Advanced (CAT6) N/A N/A
802.11ac N/A N/A
LAN GE 8 4
PoE 4 2
PoE+ 2 1
Integrated USB 3.0 AUX/console Yes Yes

Get more information

Do you have any question about the C1111-8P?

Contact us now via Live Chat or sales@router-switch.com.

C1111-8P Specification

C1111-8P Specifications
Dimensions (H x W x D) 1.75 x 12.70 x 9.015 in.
Weight 4.37 lb. (1.98 kg)
Maximum power consumption (excluding external PS loss) 18W
External power supply
●  AC input voltage: Universal 100 to 240 VAC, 50 to 60 Hz
●  Output voltage: 12 VDC
●  Maximum output power: 66W
●  Requires 150W power supply for optional PoE and PoE+
●  PoE output voltage of -53.5 VDC
Operating conditions
●  Temperature: 0° to 40°C at sea level, 1°C/1000 ft derating from 40°C
●  Altitude: 0 to 10,000 ft (0 to 3048 m)
●  Humidity: 10% to 85% relative humidity (non-condensing)
Nonoperating conditions
●  Temperature: -40° to +70°C (-40° to +158°F)
●  Altitude: 0 to 15,000 ft (0 to 4572 m)
●  Humidity: 5% to 95% relative humidity (non-condensing)
Wi-Fi domains
–
WAN GE: 2
DSL: NO
LTE(CAT6): NO
USB port 802.11ac: NO
GE: 8
SD-WAN IPsec throughput
(1400 bytes)		 1889 Mbps
SD-WAN IPsec throughput (IMIX) 465 Mbps
SD-WAN overlay tunnels 200
IPv4 forwarding throughput (IMIX) 1673 Mbps
IPsec throughput (multi tunnel, IMIX) 468 Mbps
Number of IPsec IPv4 tunnels 100
lash/DRAM 4 GB
Number of ACLs per system 4K
Number of IPv4 ACEs per system 10K
Number of IPv4 routes 280K
Number of IPv6 routes 260K
Number of NAT sessions 100K
Number of VRFs 1K
