Description

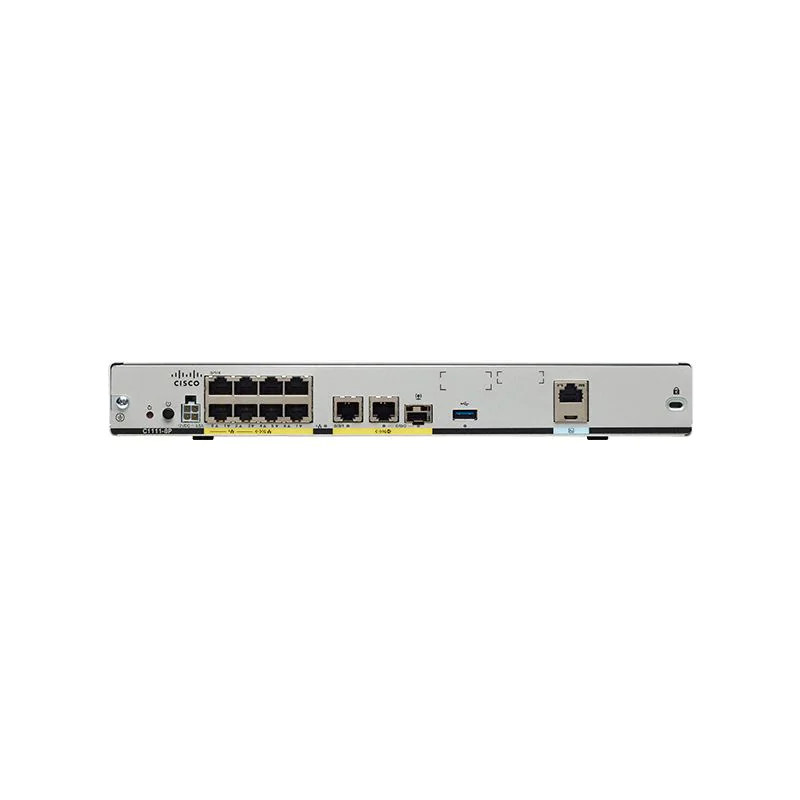

Cisco 1100 Series Integrated Services Router (ISRs) delivers Cisco IOS XE Software, providing WAN, comprehensive security, wired and wireless access in a single, high-performance platform. Cisco 1100 Series ISR is ideal for Small and Medium enterprise branch offices. The C1111-8PLTEEA is the ISR 1100 8P Dual GE SFP Router with w/ LTE Adv SMS/GPS, EMEA & NA.
Quick Spec
Table 1 shows the quick spec.
| Model | C1111-8PLTEEA |
| GE | 1 |
| GE/SFP combo | 1 |
| ADSL2/VDSL2+ | N/A |
| LTE Advanced (CAT6) | 1 EMEAR & North America |
| 802.11ac | N/A |
| GE | 8 |
| PoE | 4 |
| PoE+ | 2 |
| Integrated USB 3.0 AUX/console | Yes |
| Dimensions (H x W x D) | H x W X D = 1.75 x 12.7 x 9.6 in.
(44 x 323 x 244 mm) (includes rubber feet) |
Product Details
Table 2 shows the business benefits.
| Business need | Features/description |
| Lightweight, compact size with low power consumption | Can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors. |
| High performance to run concurrent services | High performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services. |
| High availability and business continuity | Redundant WAN connections for failover protection and load balancing.
Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP). |
| Consistent, high application performance levels | The router can run multiple services simultaneously with minimal performance degradation. |
| Risk mitigation with multilevel security | Network perimeter security with integrated application inspection firewall.
Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption. High-performance VPNs: DMVPN, FlexVPN, GET VPN, EzVPN Cisco Umbrellasecurity architecture to provide content filtering via category-based URL classification and blocking, thus helping increase productivity and providing better use of company resources. Enforced security policy with OpenDNS. Security hardware acceleration. Trustworthy systems with Field-Programmable Gate Array (FPGA) and hardware anchor. Encrypted traffic analytics maintain integrity of encrypted flow |
| Unified control of wired and wireless networks from a common console for streamlined operations | Simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller.
Supports Mobility Express for WLAN-enabled routers. |
| Remote configuration and management to keep local IT staff lean | Supports separate console/auxiliary and USB ports.
Can be configured to work with optional USB token. Supports TR-069. |
| Performance
Throughput Service reliability |
Crypto performance up to 250 Mbps for 1100-8P and 150 Mbps for 1100-4P.
A distributed multicore architecture with the industrys first internal services plane. Remote installation of application-aware services that run identically to their counterparts in dedicated appliances. |
| Lower WAN expenditures | Cisco Software-Defined WAN (SD-WAN) (over the Cisco Application Policy Infrastructure Controller Enterprise Module [APIC-EM]) support for optimized WAN connection. |
| Pay as you grow: IPsec performance upgrade model | Router IPsec capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings andCapEx budget management. |
| IT consolidation, space savings, and improved Total Cost of Ownership (TCO) | Single converged branch platform integrates routing, switching, security, and performance management capabilities. |
| Business continuity and increased resiliency | The entire 1100 Series supports Power over Ethernet (PoE) and PoE+ power toendpoints. |
Product Accessories
Table 3 shows the licenses for C1111-8PLTEEA.
| Licenses | Description |
| SL-1100-4P-APP | AppX License for Cisco ISR 1100 4P Series |
| C1-SL-1100-4P-APP | AppX Foundation License for Cisco ISR 1100 4P Series |
| SL-1100-4P-SEC | Security License for Cisco ISR 1100 4P Series |
| C1-SL-1100-4P-SEC | Security License for Cisco ISR 1100 4P Series |
| SL-1100-4P-SECNPE | NPE Security License for Cisco ISR 1100 4P Series |
Small Form-Factor Pluggable Supported
Table 4 shows the SFP for Cisco 1100 Series Routers.
| Small Form-Factor Pluggable | ISR 1100 8P | ISR 1100 4P | Description |
| GLC-EX-SMD | Yes | Yes | 1000BASE-EX SFP transceiver module, SMF, 1310nm, DOM. |
| GLC-LH-SMD | Yes | Yes | GE SFP, LC connector LX/LH transceiver; with DOM. |
| GLC-SX-MMD | Yes | Yes | GE SFP, LC connector SX transceiver; with DOM. |
| GLC-ZX-SMD | Yes | Yes | 1000BASE-ZX SFP; with DOM. |
| GLC-FE-100ZX | Yes | Yes | 100BASE-ZX SFP (80km). |
| GLC-GE-100FX | Yes | Yes | 100FX SFP on GE ports. |
| GLC-BX-D | Yes | Yes | 1000BASE-BX SFP, 1490NM. |
| GLC-BX-U | Yes | Yes | 1000BASE-BX SFP, 1310NM. |
Compare to Similar Items
Table 5 shows the comparison between C1111-8PLTEEA and C1111-8P.
| Model | C1111-8P | C1111-8PLTEEA |
| WAN GE | 1 | 1 |
| WAN GE/SFP combo | 1 | 1 |
| ADSL2/VDSL2+ | N/A | N/A |
| LTE Advanced (CAT6) | N/A | 1 EMEAR & North America |
| 802.11ac | N/A | N/A |
| LAN GE | 8 | 8 |
| PoE | 4 | 4 |
| PoE+ | 2 | 2 |
| Integrated USB 3.0 AUX/console | Yes | Yes |
Get More Information
Do you have any question about the C1111-8PLTEEA?
Contact us now via Live Chat or sales@router-switch.com.
C1111-8PLTEEA Specification
C1111-8PLTEEA Specifications |
|
|
Physical Properties |
|
| Dimensions (H x W x D) | LTE models:
H x W X D = 1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (includes rubber feet) |
|
AC Input Power |
|
| Input voltage | Universal 100 to 240 VAC |
| Frequency | 50-60 Hz |
| Input current | PoE not enabled: 0.82A maximum
PoE enabled: 1.55A Maximum |
| Surge current | 90 A peak and less than 8 Arms per half cycle |
|
Ports |
|
| Micro USB Port | One RJ-45: Separate console port |
| USB port | USB 3.0 Type A host port
USB devices supported: USB flash memory |
| Console port | One USB 5-pin micro Type B: Console management connectivity |
| 10/100/1000 Gigabit Ethernet | Two GE ports allocated among RJ45 and SFP as:
One combo port with 10/100/1000RJ-45 Ethernet port or SFP Ethernet port (labeled GE0/0/0) One dedicated 10/100/1000RJ-45 Ethernet port (labeled GE0/0/1) |
| Wireless VLANs | 32 (encrypted and non-encrypted VLANs) |
| Wireless specifications | 2×2 .11ac Wave 2 |
| Default and maximum DRAM | 4GB |
| Default and maximum flash | 4GB |
| Inline PoE | 4 ports for -8P PIDs, 2 ports for -4P PIDs
802.3af-compliant PoE or 802.3at-compliant PoE+ |
| Acoustic for Cisco 1100 Series ISRs | Not Applicable – Fanless design |
| Approvals and compliance | Emission
47 CFR Part 15
CISPR 32 Edition 2 EN 300 386 V1.6.1 EN 55032:2012/ AC:2013 EN 55032:2015 EN61000-3-2 2014 EN61000-3-3: 2013 ICES-003 ISSUE 6:2016 KN 32: 2015 V-2/2015.04 V-3/2015.04 TCVN 7189: 2009 CNS13438: 2006 IEC 60950-1 EN 60950-1 UL 60950-1 CSA C22.2 No. 60950-1 Immunity CISPR24: 2010 + A1: 2015 EN 300 386 V1.6.1 EN55024: 2010 + A1: 2015 KN35: 2015 TCVN 7317: 2003 |
|
Environmental |
|
| Operating humidity | 5 to 85% relative humidity |
| Operating temperature | 32 to 104°F (0 to 40°C) Sea Level;
32 to 77°F (0°C to 25°C) at 10,000 ft 1.5°C derating per 1000 ft |
| Altitude in China | 0-6560 ft (0-2000 m) |
| Altitude in all other countries | 0-10,000 ft (0-3050 m) |
|
Transportation and Storage |
|
| Nonoperating temperature | -40 to 158°F (-40 to 70°C) |
| Nonoperating humidity | 5 to 95% relative humidity (noncondensing) |
| Nonoperating altitude | 0 to 15,000 ft (0 to 4570m) |
