Description

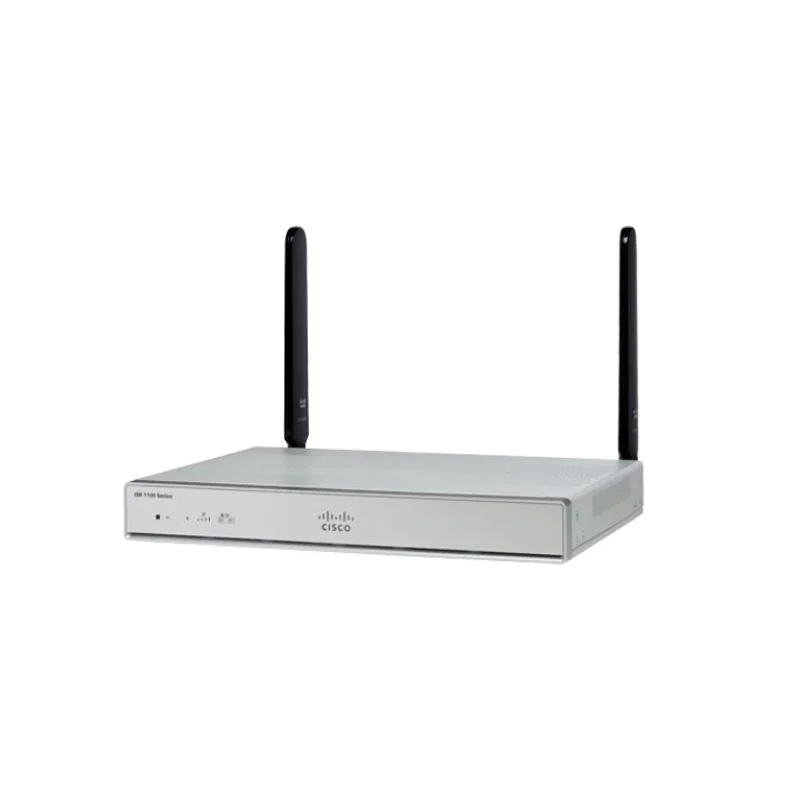

Cisco 1000 Series Integrated Services Routers (ISRs) with Cisco IOS XE Software combine Internet access, comprehensive security, and wireless services (LTE Advanced 3.0 wireless WAN and 802.11ac wireless LAN) in a single, high-performance device. The routers are easy to deploy and manage, with separate data and control plane capabilities.Wi-Fi domain WE.
Quick Specs
Table 1 shows the Quick Specs.
| Product Code | C1121-8PLTEPWE |
| Product Description | ISR 1100 8P Dual GE SFP Router Pluggable SMS/GPS EMEA & NA |
| Memory (default and maximum) | DRAM: 4 GB
Flash: 4 GB |
| Dimensions (H x W x D) | 1.65 x 12.7 x 8.9 in(41.9 x 322 x 226 mm) |
| WAN GE | 1 |
| WAN GE/SFP combo | 1 |
| ADSL2/VDSL2+ | NA |
| LTE Advanced (CAT6) | Yes with Pluggable Technology |
| Wi-Fi802.11ac | 2X2 MIMO |
| LAN GE | 8 |
| PoE | 4 |
| PoE+ | 2 |
| Integrated USB 3.0 AUX/console | Yes |
| Pluggables | Yes (All) |
Product Details
ISR 1100series provides these features:
Lightweight, compact size with low power consumption
High performance to run concurrent services
High availability and business continuity
Consistent, high application performance levels
Risk mitigation with multilevel security
Unified control of wired and wireless networks from a common console for streamlined operations
Remote configuration and management to keep local IT staff lean
Performance
-Throughput
-Service reliability
Lower WAN expenditures
Pay as you grow: IPsec performance upgrade model
IT consolidation, space savings, and improved Total Cost of Ownership (TCO)
Business continuity and increased resiliency
Architectural highlights
Multicore processors
Embedded IPsec VPN hardware acceleration
Integrated Gigabit Ethernet ports
USB-based console access
Optional PoE upgrade
Flash memory support
DRAM
Table 2 shows the business benefits.
| Business need | Features/description |
| Lightweight, compact size with low power consumption | Can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors (Including Cisco Pluggable smaller form factor technology). |
| High performance to run concurrent services | High performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services. C1160 models will have better overall performance. |
| High availability and business continuity | Redundant WAN connections for failover protection and load balancing.
Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC 2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP). |
| Consistent, high application performance levels | The router can run multiple services simultaneously with minimal performance degradation. |
| Risk mitigation with multilevel security | Network perimeter security with integrated application inspection firewall.
Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption. High-performance VPNs: DMVPN, FlexVPN, GETVPN. Encrypted Traffic Analytics (ETA) to identify malware communications in encrypted traffic using passive monitoring, extraction of relevant data elements, and supervised machine learning with cloud-based global visibility. Cisco Umbrellais a cloud security platform that provides the first line of defense against threats on the internet wherever users go. Security hardware acceleration. Trustworthy systems with Field-Programmable Gate Array (FPGA) and hardware anchor. |
| Unified control of wired and wireless networks from a common console for streamlined operations | Simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller.
Supports Mobility Express for WLAN-enabled routers. |
| Remote configuration and management to keep local IT staff lean | Supports separate console and USB ports. Can be configured to work with optional USB token.
Supports TR-069. |
| Performance
Throughput Service reliability |
ISR 1100 can provide encrypted traffic performance greater than 350 Mbps.
A distributed multicore architecture with the dedicated control plane and service plane. Remote installation of application-aware services that run identically to their counterparts in dedicated appliances (Future roadmap). |
| Lower WAN expenditures | Cisco Software-Defined WAN (SD-WAN) support for optimized WAN connection.
Smaller form factor and Cisco Pluggable technology provide additional protection investment and flexibility. |
| Pay as you grow: IPsec performance upgrade model | Router IPsec capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings and CapEx budget management. |
| IT consolidation, space savings, and improved Total Cost of Ownership (TCO) | Single converged branch platform integrates routing, switching, security, and performance management capabilities. |
| Business continuity and increased resiliency | The entire 1000 Series supports Power over Ethernet (PoE) and PoE+ power to endpoints (Not available on C1101 and C1109 smaller form factor series). |
Table 3 shows the licenses forC1100 8P Series.
| Licenses | Description |
| C1-SL-1100-8P-SEC | Security Foundation License for Cisco ISR 1100 8P Series |
| C1-SL-1100-8P-SNPE | NPE Security License for Cisco ISR 1100 8P Series |
| FL-VPERF-8P-200 | IPSEC PLUS 200 Mbps License for Cisco ISR 1100 8P Series |
| SL-1100-8P-IPB | IP Base License for Cisco ISR 1100 8 Porst Series |
| SL-1100-8P-SECNPE | NPE Security License for Cisco ISR 1100 8P Series |
| SL-1100-8P-SEC | Security License for Cisco ISR 1100 8P Series |
| C1-SL-1100-8P-APP
|
AppX Foundation License for Cisco ISR 1100 8P Series |
Small Form-Factor Pluggable Supported
Table 4 shows the SFP for Cisco 1100 Series Routers.
| Small Form-Factor Pluggable | ISR 1100 8P | ISR 1100 4P | Description |
| GLC-EX-SMD | Yes | Yes | 1000BASE-EX SFP transceiver module, SMF, 1310nm, DOM. |
| GLC-LH-SMD | Yes | Yes | GE SFP, LC connector LX/LH transceiver; with DOM. |
| GLC-SX-MMD | Yes | Yes | GE SFP, LC connector SX transceiver; with DOM. |
| GLC-ZX-SMD | Yes | Yes | 1000BASE-ZX SFP; with DOM. |
| GLC-FE-100ZX | Yes | Yes | 100BASE-ZX SFP (80km). |
| GLC-BX-D | Yes | Yes | 1000BASE-BX SFP, 1490NM. |
| GLC-BX-U | Yes | Yes | 1000BASE-BX SFP, 1310NM. |
Compare to Similar Items
Table 5shows the comparison of ISR 1100 Series.
| Model | C1121-8PLTEP | C1121-8PLTEPWE |
| Product Description | ISR 1100 8P Dual GE SFP Router Pluggable SMS/GPS | ISR 1100 8P Dual GE SFP Router Pluggable SMS/GPS EMEA & NA |
| WAN GE | 1 | 1 |
| WAN GE/SFP combo | 1 | 1 |
| ADSL2/VDSL2+ | NA | NA |
| LTE Advanced (CAT6) | Yes with Pluggable Technology | Yes with Pluggable Technology |
| 802.11ac | NA | 2X2 MIMO |
| LAN GE | 8 | 8 |
| PoE | 4 | 4 |
| PoE+ | 2 | 2 |
| Integrated USB 3.0 AUX/console | Yes | Yes |
| Pluggables | Yes (All) | Yes (All) |
