Cisco Router ISR 4000 ISR4351-SEC/K9

Cisco ISR4351-SEC/K9 is the Cisco ISR4351/k9 router with Security Bundle. Its other specifications are the same as ISR4351/k9.

Quick Specs

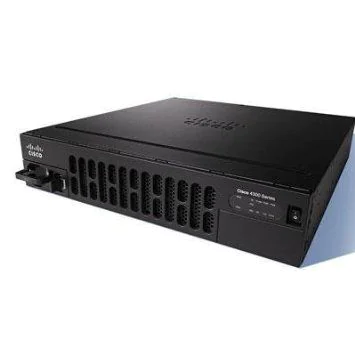

Figure 1 shows the appearance of Cisco ISR4351-SEC/K9.

Table 1 shows the Quick Specs.

Product Code	Cisco ISR4351-SEC/K9
Bundle	Security Bundle
Aggregate Throughput	200 Mbps to 400 Mbps
Total onboard WAN or LAN 10/100/1000 ports	3
RJ-45-based ports	3
SFP-based ports	3
Enhanced service-module (SM-X) slot	2
NIM (Network Interface Modules) slots	3
Onboard ISC slot	1
Memory	4 GB (default) / 16 GB (maximum)
Flash Memory	4 GB (default) / 16 GB (maximum)
Power-supply options	Internal: AC, DC (roadmap), and PoE
Rack height	2 RU
Dimensions (H x W x D)	88.9 mm x 438.15 mm x 469.9 mm

Product Details

Figure 2 shows the front panel of Cisco ISR4351-SEC/K9.

Note:

①	Power supply unit	③	Router power On/Off switch
②	Router fan tray	④	LEDs

· The router fan tray is hidden behind the removable bezel.

· LEDs include ten indicators: PSU0, GE/POE, FLASH, TEMP, PWR, POE0, SSD, ISC, FAN and STAT.

Figure 3 shows the back panel of Cisco ISR4351-SEC/K9.

Note:

①	USB Type A port	⑦	SFP port (GE 0/0/0)
②	GE management port	⑧	RJ-45 port (GE/0/0/2)
③	USB Type B mini port	⑨	NIM slots
④	Auxiliary port	⑩	Ground connection
⑤	Console port		Enhanced Service Module (SM-X) slot
⑥	RJ-45 port (GE 0/0/1)

· The NIMs support 2 single-wide or 1 double-wide.

Figure 4 shows the Security Bundle features.

The Modules, Cards and Accessories

Table 2 shows some recommended modules, cards and accessories of Cisco ISR4351-SEC/K9.

Items	Models	Descriptions
Console and Auxillary Cables	CAB-AUX-RJ45	Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M
	CAB-ETH-S-RJ45	Cisco Router Cable CAB-ETH-S-RJ45
	CAB-CONSOLE-RJ45	Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F
	CAB-CONSOLE-USB	Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B
Network Interface Modules	NIM-1MFT-T1/E1	Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module
	NIM-2CE1T1-PRI	Cisco Multiflex Trunk Voice and WAN network interface module
	NIM-4E/M	Analog voice network interface card (ear and mouth)
	NIM-2FXS	Cisco Analog voice network interface card NIM-2FXS
	NIM-2FXS/4FXO	Cisco Analog voice network interface card NIM-2FXS/4FXO
	NIM-8MFT-T1/E1	Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module
SFPs for On-Board GE Ports	GLC-SX-MMD	Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
	GLC-LH-SMD	Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
	GLC-ZX-SMD	Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM

Compare to Similar Item

Table 3 shows the comparison between two similar items.

Models	ISR4351/K9	ISR4351-SEC/K9
Bundle	None	Security Bundle
Aggregate Throughput	200 Mbps to 400 Mbps	200 Mbps to 400 Mbps
Total onboard WAN or LAN 10/100/1000 ports	3	3
RJ-45-based ports	3	3
SFP-based ports	3	3
Enhanced service-module slots	2	2
NIM slots	3	3
Onboard ISC slot	1	1
Rack height	2	2
