Cisco Router ISR 4000 ISR4431-SEC/K9

Cisco ISR4431-SEC/K9 is the Cisco ISR4431/k9 router with Security Bundle. Its other specifications are the same as ISR4431/k9.

Quick Specs

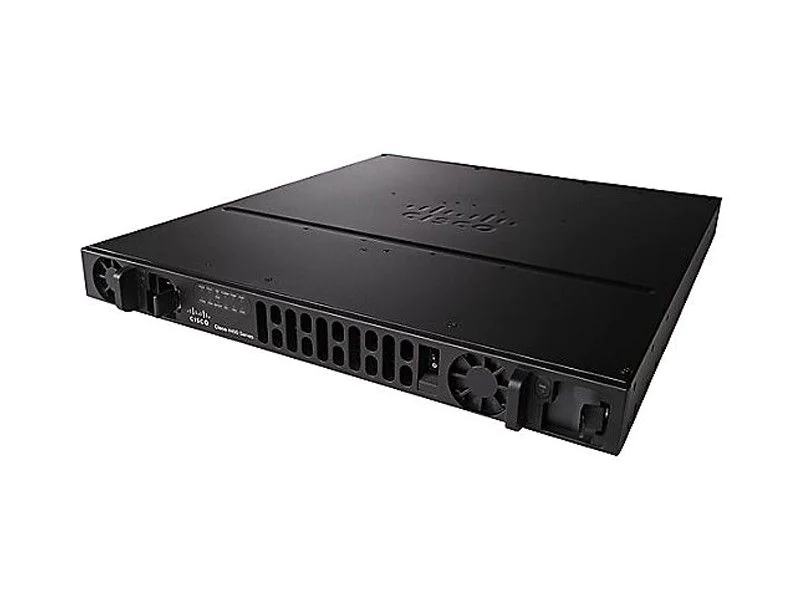

Figure 1 shows the appearance of Cisco ISR4431-SEC/K9.

Table 1 shows the Quick Specs.

Product Code	Cisco ISR4431-SEC/K9
Bundle	Security Bundle
Aggregate Throughput	500 Mbps to 1 Gbps
Total onboard WAN or LAN 10/100/1000 ports	4
RJ-45-based ports	4
SFP-based ports	4
Enhanced service-module (SM-X) slot	0
NIM (Network Interface Modules) slots	3
Onboard ISC slot	1
DDRM (data plane)	2 GB (default) / 2 GB (maximum)
DDRM (control/services plane)	4 GB (default) / 16 GB (maximum)
Flash Memory	8 GB (default) / 32 GB (maximum)
Power-supply options	Internal: AC, DC, and PoE
Rack height	1 RU
Dimensions (H x W x D)	43.9 x 438.15 x 507.2 mm
Package Weight	20.88 Kg

Product Details

Figure 2 shows the front panel of Cisco ISR4431-SEC/K9.

Note:

①	Power supply unit	③	Router power On/Off switch
②	LEDs	④	Optional power supply unit

· LEDs include 12 indicators: PSU0, PSU1, GE/POE, FLASH, TEMP, PWR, POE0, POE1, BOOST, ISC, FAN, and STAT.

Figure 3 shows the back panel of Cisco ISR4431-SEC/K9.

Note:

①	GE management port	⑤	Console port
②	Auxiliary port	⑥	GE Ports
③	USB Type A port	⑦	NIM Slots
④	USB Type B mini port

· The NIMs support 2 single-wide or 1 double-wide.

· The GE Ports include 4 RJ45 ports and 4 SFP ports.

Figure 4 shows the Security Bundle Functions.

The Modules, Cards and Accessories

Table 2 shows some recommended modules, cards and accessories of Cisco ISR4431-SEC/K9.

Items	Models	Descriptions
Console and Auxillary Cables	CAB-AUX-RJ45	Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M
	CAB-ETH-S-RJ45	Cisco Router Cable CAB-ETH-S-RJ45
	CAB-CONSOLE-RJ45	Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F
	CAB-CONSOLE-USB	Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B
Network Interface Modules	NIM-1MFT-T1/E1	Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module
	NIM-2CE1T1-PRI	Cisco Multiflex Trunk Voice and WAN network interface module
	NIM-4E/M	Analog voice network interface card (ear and mouth)
	NIM-2FXS	Cisco Analog voice network interface card NIM-2FXS
	NIM-2FXS/4FXO	Cisco Analog voice network interface card NIM-2FXS/4FXO
	NIM-8MFT-T1/E1	Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module
SFPs for On-Board GE Ports	GLC-SX-MMD	Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
	GLC-LH-SMD	Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
	GLC-ZX-SMD	Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM

Compare to Similar Items

Table 3 shows the comparison between tow similar items.

Models	ISR4431/K9	ISR4431-SEC/K9
Bundle	None	Security Bundle
Aggregate Throughput	500 Mbps to 1 Gbps	500 Mbps to 1 Gbps
Total onboard WAN or LAN 10/100/1000 ports	4	4
RJ-45-based ports	4	4
SFP-based ports	4	4
Enhanced service-module slots	0	0
NIM slots	3	3
Onboard ISC slot	1	1
Rack height	1	1
