Cisco Switch Catalyst 2960 WS-C2960X-24PSQ-L

Cisco Switch Catalyst 2960 WS-C2960X-24PSQ-L

Original price was: $4,805.00.Current price is: $1,821.00.

Catalyst 2960-X 24 GigE(8 PoE), 2 x 1G SFP, 2 X 10/100/1000 BT, LAN Base



Category:

Description

Cisco catalyst 2960X-24PSQ-L LAN Base standalone Layer 2 switch offers twenty-four 10/10/1000 Ethernet Gigabit ports and two 1G SFP, and two Copper 10/100/1000 uplink interfaces. The industry standard IEEE802.3at PoE+ provides up to 110W PoE power which can powers up to 8 ports of POE(first eight ports only) with 12.95W per port or 7 ports of POE with 15.4W per port or 3 ports of POE with 30W per port.

Quick Specs

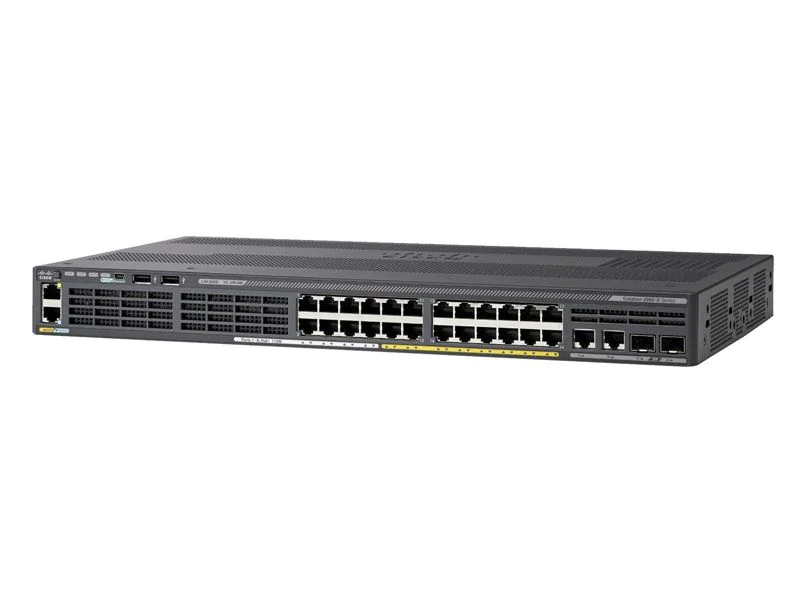

Figure 1 shows the appearance of WS-C2960X-24PSQ-L.

WS-C2960X-24PSQ-L

Table 1 shows the Quick Specs

Product Code WS-C2960X-24PSQ-L
Enclosure Type Rack-mountable – 1U
Feature Set LAN Base
Uplink Interfaces 2 x 1G SFP + 2 x 10/100/1000BT
Ports 24 x 10/100/1000 Ethernet Gigabit ports (8 PoE)
Available PoE Power 110W
Maximum stacking number Not Supported
Stack bandwidth Not Supported
Forwarding Performance 71.4Mpps
Switching Bandwidth 216Gbps
RAM 512 MB
Flash Memory 128 MB
Dimensions 44.5 cm x 28 cm x 4.45 cm

Product Details

Figure 2 shows the front panel of WS-C2960X-24PSQ-L.

WS-C2960X-24PSQ-L Front Panel

Note:

① One Console Port ⑤ Two USB Ports
② 24 x 10/100/1000 Ethernet Gigabit Ports (8 PoE) ⑥ One USB mini Port
③ 2 x 10/100/1000BT ⑦ LEDs Area
④ 2 x 1G SFP ⑧ One MGMT Port

– LEDs area include SYST (system), STAT (status), SPEED, and POE LEDs.

The Accessories

Table 2 shows some accessories of the WS-C2960X-24PSQ-L.

Models Description
GLC-LH-SMD Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F
CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B

Compare to Similar Items

Table 3 shows the comparison of similar items.

Models WS-C2960X-24PSQ-L WS-C2960X-24PS-L
Ports 24 x Ethernet 10/100/1000 Gigabit ports?(8 PoE) 24 x Ethernet 10/100/1000 Gigabit, PoE ports
Uplinks 2 x 1G SFP + 2 x 10/100/1000BT 4 x 1G SFP
Feature Set LAN Base LAN Base
FlexStack-Plus Stacking Not Supported Optional
Available PoE Power 110W 370W

Get more information

Do you have any question about the Cisco Catalyst C2960X-24PSQ-L switch

WS-C2960X-24PSQ-L Specification

WS-C2960X-24PSQ-L Specification
Enclosure type Rack-mountable – 1U
Ports 24 x 10/100/1000 + 2 x 1G SFP + 2 10/100/1000BT
Network management Interface 10/100 Mbps Ethernet (RJ-45)
Available PoE Power 110W
Forwarding bandwidth(Gbps) 108Gbps
Maximum stacking number None
Stack Bandwidth None
Forwarding Performance 71.4Mpps
Switching bandwidth 216Gbps
Maximum active VLANs 1023
MAC Address Table Size 16K (default)
CPU APM86392 600MHz dual core
RAM 256 MB
Flash Memory 64 MB
Status Indicators Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed
Expansion / Connectivity
Console ports USB (Type-B), Ethernet (RJ-45)
Stacking cable None
Power Redundancy Option (PWR-RPS2300)
Voltage range (Auto) 110V-240V
Power Consumption Operational 0.16KVA
Miscellaneous
Width 17.5 Inches (44.5 cm)
Depth 11.03 Inches (28 cm)
Height 1.73 Inches (4.45 cm)
Weight 12.8 Pounds (5.8 Kg)
Rack Mounting Kit optional
 MTBF in hours 462,680
Compliant Standards ● IEEE 802.1D Spanning Tree Protocol
● IEEE 802.1p CoS Prioritization
● IEEE 802.1Q VLAN
● IEEE 802.1s
● IEEE 802.1w
● IEEE 802.1X
● IEEE 802.1ab (LLDP)
● IEEE 802.3ad
● IEEE 802.3af and IEEE 802.3at
● IEEE 802.3ah (100BASE-X single/multimode fiber only)
● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

● IEEE 802.3 10BASE-T
● IEEE 802.3u 100BASE-TX
● IEEE 802.3ab 1000BASE-T
● IEEE 802.3z 1000BASE-X
● RMON I and II standards
● SNMP v1, v2c, and v3
● IEEE 802.3az
● IEEE 802.1ax
System software / license
System software IOS LAN BASE
license NERGY-MGT-100-K9, EW-DO-100-DE
features ●Jumbo Frames

●VLANS

●Voice Vlan

●VTPv2

●CDPv2

●LLDP

●802.3ad LACP

●PVST/PVST+

●802.1W/802.1S

●Port Fast/Uplink Fast

●port CoS Trust and Override

●Scheduling

●Priority Queuing

●Configure CoS Priority Queues

●Weighted Tail Drop

●DSCP transparency
Network security ●SSH, SSL and SCP

●RADIUS and TACACS+

●SNMPv3 crypto

●802.1x

●802.1x Accounting / MIB

●802.1x w/ port security

●802.1x w/Voice VLAN

●802.1x Guest VLAN

●802.1x VLAN assignment

●802.1x MAC-Auth Bypass

●BPDU/Root Guard

●Port Security

●Private VALN Edge

●Storm Control

●Block unknown unicast and multicast

●IGMP Snooping

●IGMP Filter/Throttle
Management and Troubleshooting ●Auto-MDOX

●TDR

●UDLD

●IP SLA Responder

●layer 2 / IP Traceroute

●SPAN

●RSPAN

●Express Setup

●Device Manager

●Cisco Network Assistant

●Smartports + Advisor

●Troubleshooting Advisor

●Drag-and-drop Cisco IOS Upgrade

●IP Address DHCP

●Autoinstall with saved configuration

●Configuration Replace

●DHCP Auto Image Upgrade

●DHCP Port Based Allocation

●Error Disable MIB
Environmental Ranges
Operating temperature up to 5000 ft (1500 m) 23ºF to 113ºF

(-5ºC to 45ºC)
Operating temperature up to 10,000 ft (3000 m) 23ºF to 104ºF

(-5ºC to 40ºC)
Short-term exception at sea level* 23ºF to 131ºF

(-5ºC to 55ºC)
Short-term exception up to 5000 feet (1500 m)* 23ºF to 122ºF

(-5ºC to 50ºC)
Short-term exception up to 10,000 feet (3000 m)* 23ºF to 113ºF

(-5ºC to 45ºC)
Short-term exception up to 13,000 feet (4000 m)* 23º to 104ºF

(-5ºC to 40ºC)
Storage temperature up to 15,000 feet (4573 m) -13º to 158ºF

(-25º to 70ºC)
Operating altitude Up to 10,000 Feet

(Up to 3000 Meters)
Storage altitude Up to 13,000

(Up to 4000 Meters)
Operating relative humidity 10% to 95% noncondensing
Storage relative humidity 10% to 95% noncondensing
