Cisco Switch Catalyst 2960 WS-C2960X-24TS-LL

Cisco Switch Catalyst 2960 WS-C2960X-24TS-LL

Catalyst 2960-X 24 GigE, 2 x 1G SFP, LAN Lite



Category:

Description

Cisco® Catalyst® 2960-X and 2960-XR Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). They operate on Cisco IOS® Software and support simple device management as well as network management. The Cisco Catalyst 2960-X and 2960-XR Series provide easy device onboarding, configuration, monitoring, and troubleshooting. These fully managed switches can provide advanced Layer 2 and Layer 3 features as well as optional Power over Ethernet Plus (PoE+) power. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure, and energy-efficient business operations with intelligent services. The switches deliver enhanced application visibility, network reliability, and network resiliency.

Quick Specs

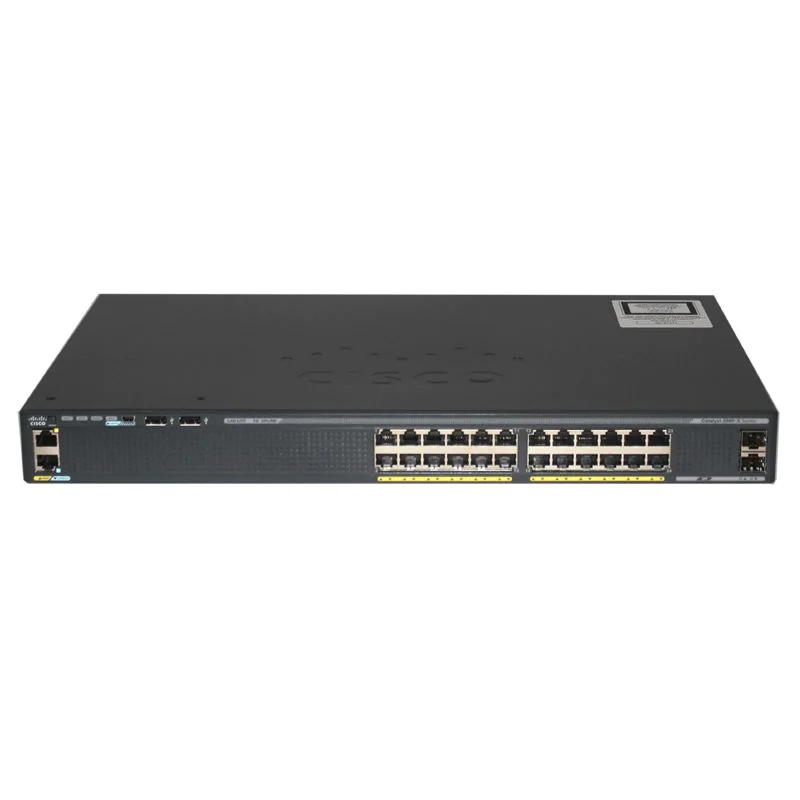

Figure 1 shows the front view of the Cisco 2960X-24TS-LL switch.

WS-C2960X-24TS-LL

Table 1 shows the Quick Spec of the Cisco 2960X-24TS-LL switch.

Product Code WS-C2960X-24TS-LL
Enclosure Type Rack-mountable – 1U
Feature Set LAN Lite
Uplink Interfaces 2 x 1G SFP
Ports 24 x Ethernet 10/100/1000 Gigabit ports
Forwarding Bandwidth 50Gbps
Switching Bandwidth 100Gbps
RAM 256 MB
Flash Memory 64 MB
Dimensions 44.5 cm x 27.9 cm x 4.5 cm
Package Weight 9.19 Kg

Product Details

Figure 2 shows the front panel of the Cisco 2960X-24TS-LL switch.

WS-C2960X-24TS-LL Front-Panel

Note:

① Ethernet management port ⑥ SFP module ports
② Mode button ⑦ 24*10/100/1000 ports?SFP module ports
③ Switch LEDs ⑧ CONSOLE LED
④ USB mini-Type B (console) port ⑨ MGMT LED
⑤ USB Type A ports ⑩ RJ-45 console port

Figure 3 shows the back panel of the Cisco 2960X-24TS-LL switch.

WS-C2960X-24TS-LL Back Panel

Note:

① Fan Exhaust
② RPS Connector
④ AC power connector

Figure 4 shows the unboxing view of WS-C2960X-24TS-LL.

WS-C2960X-24TS-LL Unboxing

The Accessories

Table 2 shows some accessories of the WS-C2960X-24TS-LL.

Models Description
GLC-LH-SMD Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F
CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B

Solution

How to use this product to build Network for Small Business (Requires Router & Voice Module)?

See here: SMB Network Options

Get More Information

Do you have any question about the Cisco Catalyst C2960X-24TS-LL switch?

WS-C2960X-24TS-LL Specification

Model
WS-C2960X-24TS-LL
Brand
Cisco
Enclosure type
Rack-mountable – 1U
Ports
24 x 10/100/1000 + 2 x 1G SFP
Network management interface
10/100 Mbps Ethernet (RJ-45)
Available PoE power
None
Forwarding bandwidth
50 Gbps
Maximum stacking number
None
Stack bandwidth
None
Forwarding performance
68.5 Mpps
Switching bandwidth
100 Gbps
Maximum active VLANs
64
MAC address table size
16K (default)
CPU
APM86392 600 MHz dual core
RAM
256 MB
Flash memory
64 MB
Status indicators
Per-port status: Link integrity, disabled, activity, speed, and full duplex. System status: System, RPS, stack link status, link duplex, PoE, and link speed
Console ports
USB (Type-B), Ethernet (RJ-45)
Stacking cable
None
Power redundancy
Option (PWR-RPS2300)
Voltage range (Auto)
110V-240V
Power consumption operational
0.035 KVA
Width
17.5 in (44.5 cm)
Depth
11 in (27.9 cm)
Height
1.75 in (4.5 cm)
Rack mounting kit
optional
MTBF in hours
622,350
Compliant standards
IEEE 802.1D Spanning Tree Protocol, IEEE 802.1p CoS Prioritization, IEEE 802.1Q VLAN, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.1ab (LLDP), IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ah (100BASE-X single/multimode fiber only), IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports, IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-X, RMON I and II standards, SNMP v1, v2c, and v3, IEEE 802.3az, IEEE 802.1ax
System software
IOS LAN Lite
License
NERGY-MGT-100-K9, EW-DO-100-DE
Features
Jumbo Frames, VLANs, Voice VLAN, VTPv2, CDPv2, LLDP, 802.3ad LACP, PVST/PVST+, 802.1W/802.1S, Port Fast/Uplink Fast, Port CoS Trust and Override, Scheduling, Priority Queuing, Configure CoS Priority Queues, Weighted Tail Drop, DSCP transparency
Network security
SSH, SSL and SCP, RADIUS and TACACS+, SNMPv3 crypto, 802.1x, 802.1x Accounting / MIB, 802.1x w/ port security, 802.1x w/Voice VLAN, 802.1x Guest VLAN, 802.1x VLAN assignment, 802.1x MAC-Auth Bypass, BPDU/Root Guard, Port Security, Private VLAN Edge, Storm Control, Block unknown unicast and multicast, IGMP Snooping, IGMP Filter/Throttle
Management and troubleshooting
Auto-MDOX, TDR, UDLD, IP SLA Responder, Layer 2 / IP Traceroute, SPAN, RSPAN, Express Setup, Device Manager, Cisco Network Assistant, Smartports + Advisor, Troubleshooting Advisor, Drag-and-drop Cisco IOS Upgrade, IP Address DHCP, Autoinstall with saved configuration, Configuration Replace, DHCP Auto Image Upgrade, DHCP Port Based Allocation, Error Disable MIB
Operating temperature up to 5000 ft (1500 m)
23°F to 113°F
Operating temperature up to 10,000 ft (3000 m)
23°F to 104°F
Short-term exception at sea level
23°F to 131°F
Short-term exception up to 5000 feet (1500 m)
23°F to 122°F
Short-term exception up to 10,000 feet (3000 m)
23°F to 113°F
Short-term exception up to 13,000 feet (4000 m)
23°F to 104°F
Storage temperature up to 15,000 feet (4573 m)
-13°F to 158°F
Operating altitude
Up to 10,000 feet
Storage altitude
Up to 13,000 feet
Operating relative humidity
10% to 95% non-condensing
Storage relative humidity
10% to 95% non-condensing
