Description
Cisco catalyst 2960X-48LPD-L LAN Base Layer 2 stackable switch is comprised of 48 Ethernet 10/100/1000 ports with POE+ and 2 x 10G SFP+ uplink interfaces.
Quick Specs

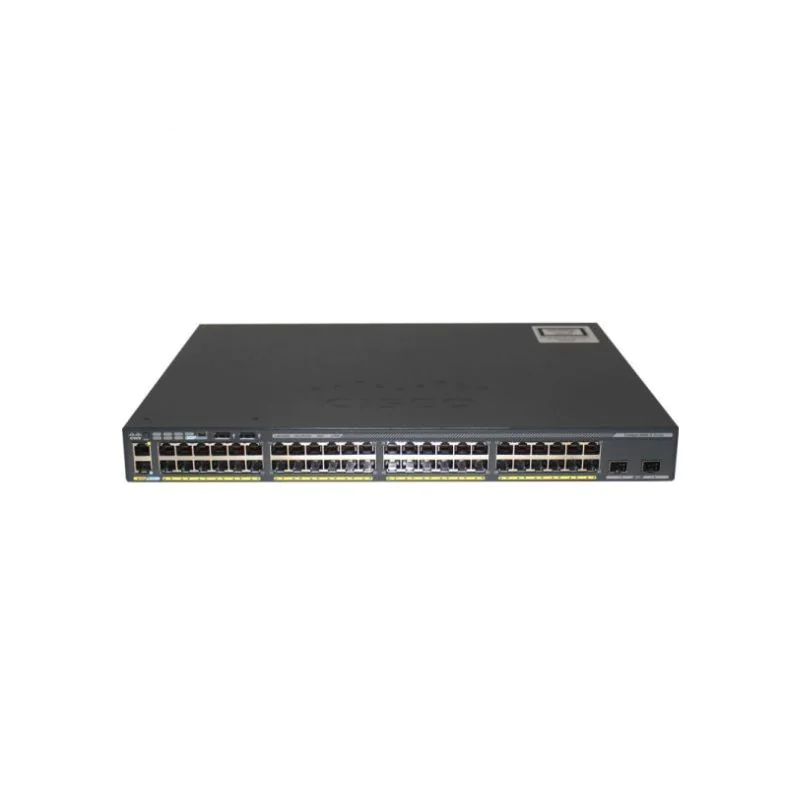

Figure 1 shows the appearance of WS-C2960X-48LPD-L.
Table 1 shows the Quick Specs
| Product Code | WS-C2960X-48LPD-L |
| Enclosure Type | Rack-mountable – 1U |
| Feature Set | LAN Base |
| Uplink Interfaces | 2 x 10G SFP+ |
| Ports | 48 x 10/100/1000 |
| Available PoE Power | 370W |
| Maximum stacking number | 8 |
| Stack bandwidth | 80G |
| Forwarding Performance | 130.9Mpps |
| Switching Bandwidth | 216Gbps |
| RAM | 512 MB |
| Flash Memory | 128 MB |
| Dimensions | 44.5 x cm x 36.8 cm x 4.5 cm |
| Package Weight | 10.65 Kg |
Product Details
Figure 2 shows the front panel of the Cisco Catalyst 2960X-48LPD-L switch.
Note:
①Ethernet management port
②Mode button
③Switch LEDs
④USB mini-Type B (console) port
⑤USB Type A ports
⑥SFP module ports
⑦48 x 10/100/1000 ports
⑧CONSOLE LED
⑨MGMT LED
⑩RJ-45 console port
·The Switch LEDs include SYST, STAT, SPEED, RPS, MAST, POE and STACK LEDs.
·Power over Ethernet Plus(PoE+) supports up to 370W of PoE budget for 12 ports with 30W per port or 24 ports with 15.4W per port or 48 ports with 7.4W per port
Figure 3 shows the back panel of the Cisco Catalyst 2960X-48LPD-L switch.
Note:
①FlexStack-Plus module slot and cover
②Fan Exhaust
③RPS Connector
④ AC power connector
·External RPS supports redundant power.
Figure 4 shows the stackable capacity.
This C2960X switch delivers stackable capacity that supports up to 8 switches stacking with same 2960-X LAN base series. It also can stack up to 4 switches stacking when mixed with 2960-S LAN base series switches.
The Accessories
Table 2 shows some accessories of WS-C2960X-48LPD-L.
| Models | Description |
| C2960X-STACK | Catalyst 2960-X FlexStack Plus Stacking Module |
| CAB-STK-E-0.5M | Cisco FlexStack Stacking Cables |
| GLC-LH-SMD | Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
| GLC-SX-MMD | 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
| CAB-CONSOLE-RJ45 | Console Cable 6ft with RJ45 and DB9F |
| CAB-CONSOLE-USB | Console Cable 6 ft with USB Type A and mini-B |
Compare to Similar Items
Table 3 shows the comparison of similar items.
| Models | WS-C2960X-48LPD-L | WS-C2960X-48LPS-L |
| Ports | 48 x 10/100/1000 | 48 x 10/100/1000 |
| Uplinks | 2 x 10G SFP+ | 4 x 1G SFP |
| Available PoE Power | 370W | 370W |
| FlexStack-Plus Stacking | Optional | Optional |
