Description
Cisco Catalyst 3650-48PS-L switch provides up to 390W POE power with up to 30W per port. It delivers Cisco StackWise-160 Technology, which can stack 9 switches and support up to 160 Gpbs stack bandwidth.
Quick Specs

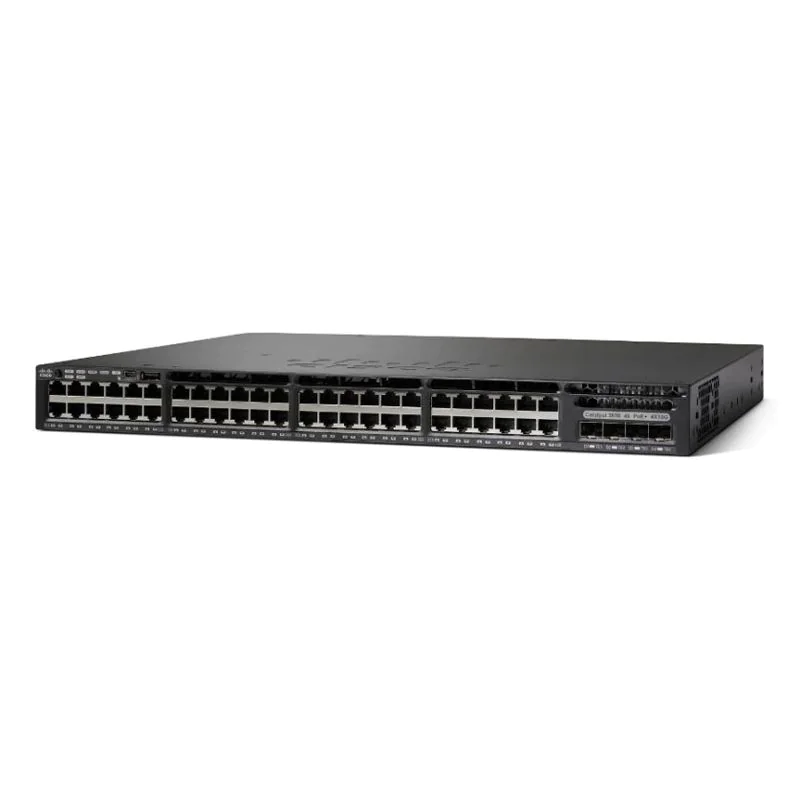

Figure 1 shows the appearance of WS-C3650-48PS-L.
Table 1 shows the Quick Specs.
| Product Code | WS-C3650-48PS-L |
| Enclosure Type | Rack-mountable – 1U |
| Feature Set | LAN Base |
| Available PoE Power | 390W |
| Uplink Interfaces | 4 x 1G SFP |
| Ports | 48 x 10/100/1000 Ethernet ports |
| Maximum stacking number | 9 |
| Stack bandwidth | 160 Gpbs |
| Forwarding Performance | 77.37Mpps |
| Switching Capacity | 176Gbps |
| RAM | 4 G |
| Flash Memory | 2G |
| Number of AP per switch/stack | 50 |
| Number of wireless clients per switch/stack | 1000 |
| Dimensions | 44.5 cm x 44.5 cm x 4.4 cm |
| Package Weight | 17.49 Kg |
Product Details
Figure 2 shows the front panel of WS-C3650-48PS-L.
Note:
①?Status LEDs
②?USB mini-Type B (console) port
③?USB Type A storage port
④?48 x 10/100/1000 Ports
⑤?Uplink ports
Figure 3 shows the back panel of WS-C3650-48PS-L.
Note：
①?Ground connector
②?CONSOLE (RJ-45 console port)
③?MGMT (RJ-45 10/100/1000 management port)
④?Fan module
⑤?Power supply modules
⑥?Stacking modules
Figure 4 shows the StackWise-160 Kit.
The Cisco Catalyst 3650 supports an optional stacking module that is based on the Cisco StackWise-160 technology which allows stacking up to 9 switches.
The Modules, Licenses and Accessories
Table 2 shows some modules, licenses and accessories of this switch.
| Models | Description |
| C3650-STACK-KIT= | Cisco Catalyst 3650 Stack Module Spare |
| L-C3650-48-L-S= | C3650-48 LAN Base to IP Base Electronic RTU License |
| L-C3650-48-L-E= | C3650-48 LAN Base to IP Services Electronic RTU License |
| PWR-C2-640WAC= | 640W AC Config 2 Secondary Power Supply |
| CAB-CONSOLE-RJ45 | Console Cable 6ft with RJ45 and DB9F |
| CAB-CONSOLE-USB | Console Cable 6 ft with USB Type A and mini-B |
