Description
Cisco Catalyst WS-C3850-12S-S is the next generation enterprise-level stackable switch that is integrated with 12 SFP ports in IP base feature set.
Quick Specs

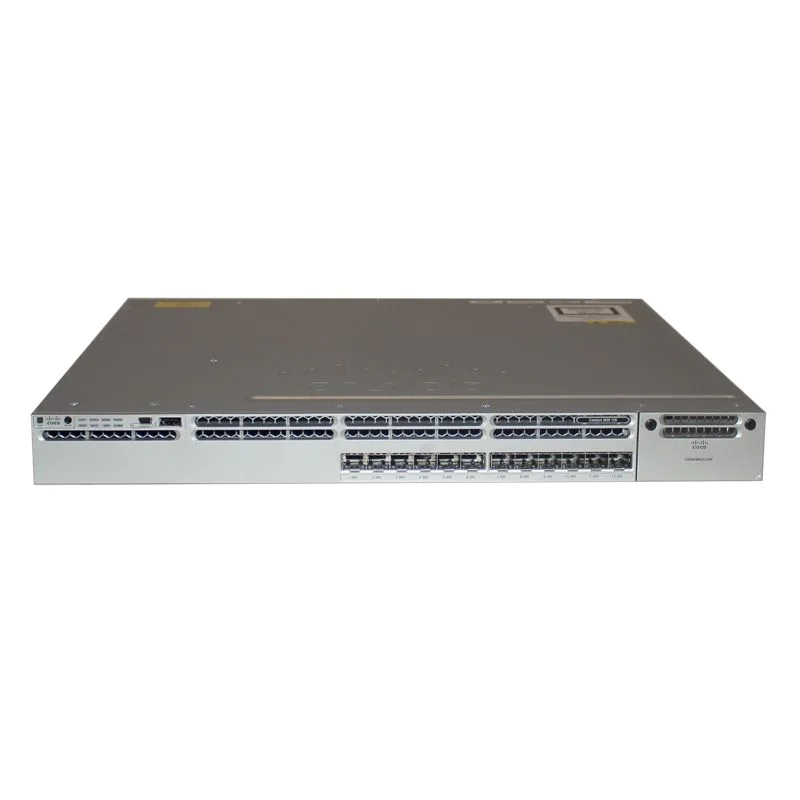

Figure 1 shows the appearance of the Cisco Catalyst WS-C3850-12S-S.
Table 1 shows the Quick Specs.
| Product Code | WS-C3850-12S-S |
| Enclosure Type | 1 RU |
| Feature Set | IP base |
| Network SFP uplink module selection | C3850-NM-4-1G |
| Ports | 12 ports of SFP Ethernet fiber connection with Flexible Netflow feature |
| Maximum stacking number | 9 |
| Stack bandwidth | 480Gbps |
| Forwarding Performance | 68.4Mpps |
| Switching Capacity | 68Gbps |
| RAM | 4 G |
| Flash Memory | 2 G |
| Number of AP per switch/stack | 100 |
| Number of wireless clients per switch/stack | 2000 |
| Dimensions | 44.5 cm x 45.0 cm x 4.45 cm |
| Package Weight | 17.49 Kg |
Product Details
Figure 2 shows the front panel of the Cisco 3850 series 12 ports switch.
Note：
① UID (blue beacon) ② Mode button ③ Status LEDs ④ USB mini-Type B (console) port ⑤ USB Type A storage port ⑥ 12 ports of SFP ⑦ Network SFP uplink module slot
·The status LEDs include STAT (status), DUPLX (duplex), SPEED, STACK, SYST (system), ACTV (active) and S-PWR (Stack Power).
·The switch supports one hot-swappable network module that provides uplink ports to connect to other devices. The switch should only be operated with either a network module or a blank module installed.
Figure 3 shows the back panel of the WS-C3850-12S-S switch.
Note：
① Ground connector ② CONSOLE (RJ-45 console port) ③ Fan modules ④ MGMT port ⑤ UStackWise port connectors ⑥ StackPower connectors ⑦ Power supply modules
Figure 4 shows the StackWise-480 and StackPower connectors.
In order to stacking with LAN base feature set, WS-C3850-12S-S needs to configure in LAN base mode from CLI.
Figure 5 shows the unboxing view of WS-C3850-12S-S.
The Modules, Licenses and Accessories
Table 2 shows some recommended modules,licenses and accessories of this switch.
| Models | Description |
| C3850-NM-4-1G | Cisco 3850 Series 4 x 1GE Network Module |
| C3850-NM-2-10G | Cisco 3850 Series 2 x 10GE Network Module |
| L-C3850-12-S-E= | C3850-12 IP Base to IP Services Electronic RTU License |
| PWR-C1-350WAC | Cisco 3850 Series Power Supply 350W AC |
| PWR-C1-350WAC/2 | Cisco 3850 Series Secondary Power Supply 350W AC Config 1 Secondary Power Supply |
| STACK-T1-50CM= | Cisco StackWise-480 50cm stacking cable for Cisco Catalyst 3850 series switch |
| STACK-T1-1M= | Cisco StackWise-480 1m stacking cable for Cisco Catalyst 3850 series switch |
