Description
WS-C4500X-32SFP+ is a Cisco Catalyst 4500-X Series Switch. It is a fixed aggregation switch that delivers best-in-class scalability, simplified network virtualization, and integrated network services for space-constrained environments in campus networks.
Quick Specs

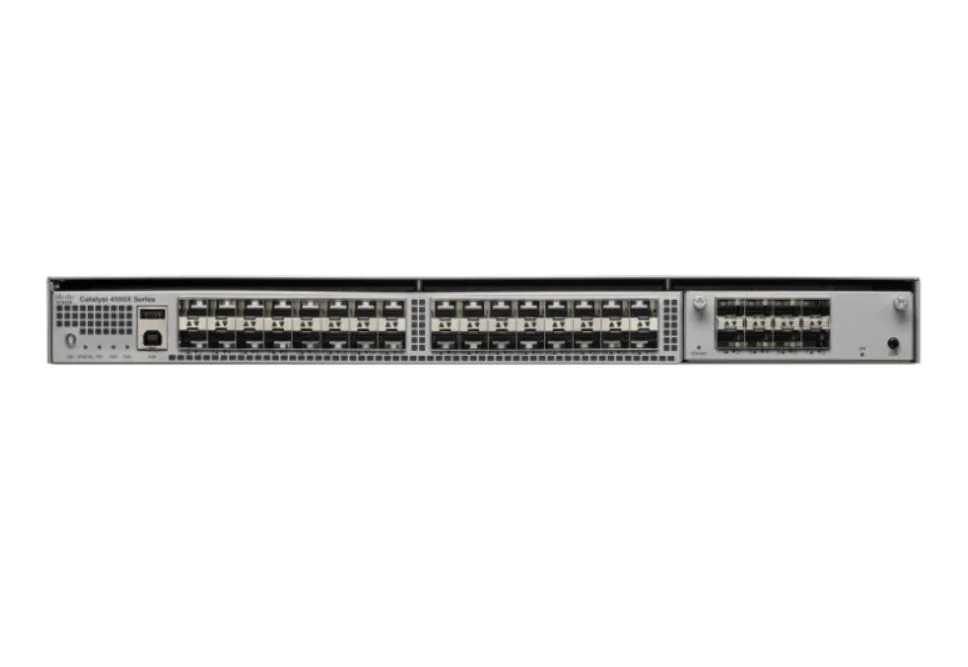

Figure 1 shows the appearance of WS-C4500X-32SFP+.
Table 1 shows the Quick Specs.
| Product Code | WS-C4500X-32SFP+ |
| Ports | 32 × 1G or 10G Ethernet ports (requires either SFP or SFP+ transceivers) |
| Feature Set | IP Base |
| Uplink Module Slot | 1(8 x 10 GE SFP+/SFP – C4KX-NM-8SFP+) |
| Switching Capacity | Up to 800-Gbps |
| Onboard Memory (SRAM DDR-II) | 4GB |
| Port Buffers | 32-MB Shared Memory |
| CPU | Dual Core 1.5 GHz |
| NVRAM | 2 GB |
| Optional External Memory (SD Card) | 2 GB |
| Airflow | Front-to-back cooling |
| Chassis dimensions (H x W x D) | 4.4 x 43.8 x 53.3 cm |
| Package?Weight | 19.84 Kg |
Product Details
Figure 2 shows the front panel of WS-C4500X-32SFP+.
Note:
① LEDs Area
② USB ports (2 ports) Top port is a Type A connector; bottom port is a Type B connector
③ 32 × Ethernet ports
④ 8-port uplink module slot (Purchased alone)
· There are five LEDs in the LEDs Area: UID LED, STATUS LED, PS1 LED, PS2 LED and FAN LED.
Figure 3 shows the back panel of WS-C4500X-32SFP+ with installed AC-input power supply. No power supply is included in this product. Need to order a power supply in addition.
Note:
①SECURE DIGITAL port
②CONSOLE port
③10/100/1000 MGT port
④Fan assemblies (5 assemblies)
⑤Chassis ground pad
⑥Power supply bay (AC-input power supply shown installed)
⑦Power supply bay (AC-input power supply shown installed)
The Accessories
Table 2 shows the recommended elements for the WS-C4500X-32SFP+.
| Category | Model | Description |
| Uplink Module | C4KX-NM-8SFP+ | Cisco Catalyst 4500-X 8 Port 10GE Ethernet port uplink Module C4KX-NM-8SFP+ |
| Power Supply | C4KX-PWR-750AC-R= | Catalyst 4500X 750W AC front to back cooling power supply |
| C4KX-PWR-750AC-R/2 | Catalyst 4500X 750W AC front to back cooling 2nd PWR supply | |
| License | L-C4500X-IP-ES= | Cisco Catalyst 4500-X IP BASE to Enterprise Services upgrade license (electronic delivery) for 32-port and 40-port models |
| Console Cable | CAB-CONSOLE-RJ45 | Console Cable 6ft with RJ45 and DB9F |
| 1G SFP | GLC-SX-MMD | 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
| GLC-LH-SMD | 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM | |
| 10G SFP | SFP-10G-SR | 10GBASE-SR SFP Module |
| SFP-10G-ZR | Cisco 10GBASE-ZR SFP10G Module for SMF |
